Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

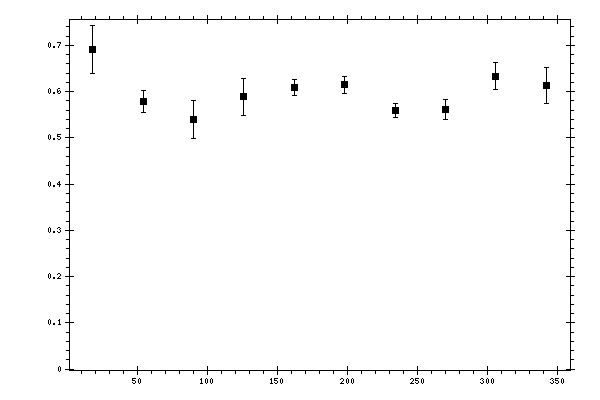

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.690966 | 0.0516511 | 0.09868759 |
| 54 | 0.57805 | 0.0236759 | 0.07334072 |
| 90 | 0.540012 | 0.0409507 | 0.04249108 |
| 126 | 0.588463 | 0.0398512 | 0.05261903 |
| 162 | 0.608914 | 0.0169736 | 0.04529064 |
| 198 | 0.615207 | 0.0183304 | 0.04603645 |
| 234 | 0.558597 | 0.0149654 | 0.04033799 |
| 270 | 0.561058 | 0.0208411 | 0.04362312 |
| 306 | 0.633605 | 0.0301304 | 0.05820524 |
| 342 | 0.613681 | 0.038605 | 0.09627748 |
