Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|

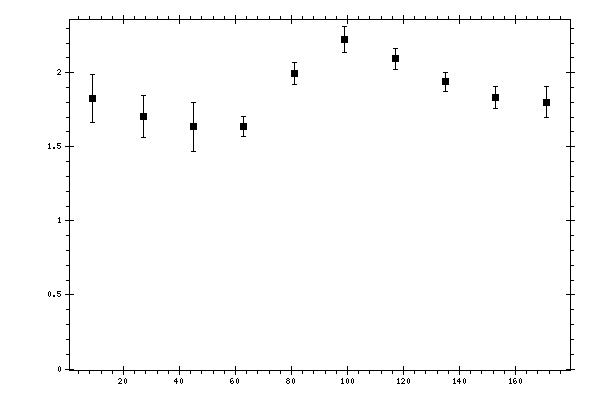

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.82513 | 0.159476 | 0.32559496 |
| 27 | 1.70288 | 0.142256 | 0.32865096 |
| 45 | 1.63376 | 0.165164 | 0.21961853 |
| 63 | 1.63444 | 0.068223 | 0.17006864 |
| 81 | 1.99391 | 0.0754147 | 0.17198228 |
| 99 | 2.22557 | 0.0877714 | 0.18530096 |
| 117 | 2.093 | 0.0690666 | 0.16190297 |
| 135 | 1.9375 | 0.0613675 | 0.15105712 |
| 153 | 1.83249 | 0.0769519 | 0.1446741 |
| 171 | 1.80078 | 0.103642 | 0.14395316 |
