Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

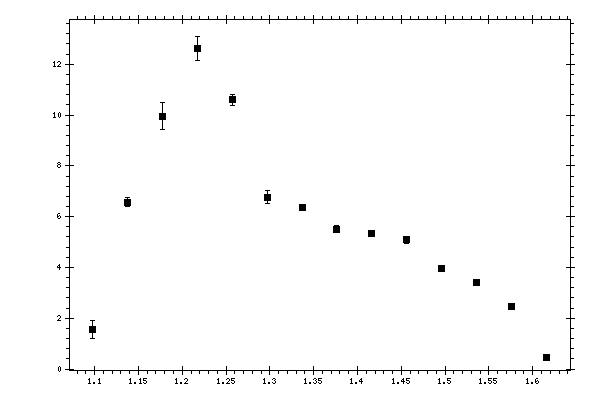

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09776 | 1.55731 | 0.349793 | 0.62845159 |
| 1.13758 | 6.57622 | 0.17022 | 0.91511481 |
| 1.17741 | 9.96106 | 0.536809 | 1.16733353 |
| 1.21724 | 12.6274 | 0.476777 | 1.33754451 |
| 1.25707 | 10.6025 | 0.207279 | 0.82043558 |
| 1.29689 | 6.77033 | 0.259392 | 0.56159643 |
| 1.33672 | 6.35087 | 0.123624 | 0.4947151 |
| 1.37655 | 5.5126 | 0.132691 | 0.43010623 |
| 1.41638 | 5.33935 | 0.118698 | 0.38488868 |
| 1.45621 | 5.08228 | 0.121663 | 0.36644003 |
| 1.49603 | 3.96073 | 0.0944589 | 0.27714559 |
| 1.53586 | 3.42316 | 0.101606 | 0.23960551 |
| 1.57569 | 2.44972 | 0.0514704 | 0.17151703 |
| 1.61552 | 0.441456 | 0.121247 | 0.0318366 |
