Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

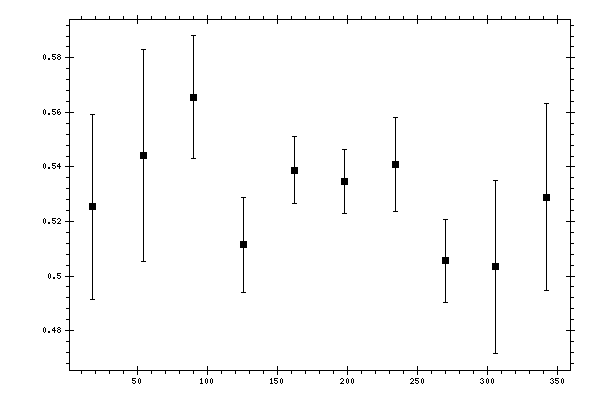

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.525392 | 0.0338062 | 0.07303297 |
| 54 | 0.544155 | 0.0389141 | 0.05394134 |
| 90 | 0.565577 | 0.0225059 | 0.05119144 |
| 126 | 0.511495 | 0.0174369 | 0.03724953 |
| 162 | 0.538847 | 0.0122015 | 0.03959157 |
| 198 | 0.534784 | 0.0116882 | 0.04048296 |
| 234 | 0.54086 | 0.0172116 | 0.03934989 |
| 270 | 0.505574 | 0.0152782 | 0.04025528 |
| 306 | 0.503387 | 0.0316435 | 0.05222313 |
| 342 | 0.528895 | 0.0342861 | 0.07109367 |
