Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

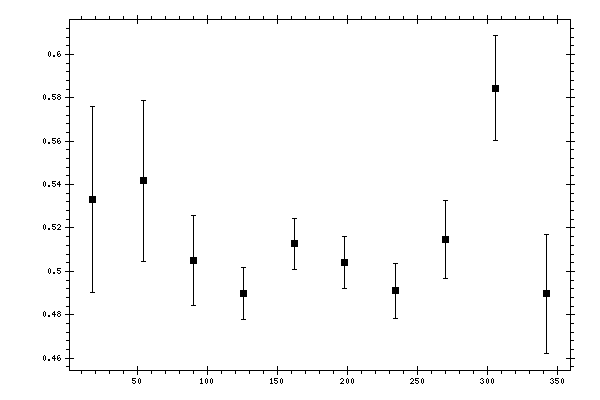

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.533231 | 0.0428335 | 0.08432586 |
| 54 | 0.54178 | 0.0371863 | 0.0560896 |
| 90 | 0.50515 | 0.0207927 | 0.04164377 |
| 126 | 0.489888 | 0.0121183 | 0.03646005 |
| 162 | 0.512737 | 0.0117901 | 0.03875085 |
| 198 | 0.503949 | 0.0120653 | 0.03897419 |
| 234 | 0.490954 | 0.0124714 | 0.03561841 |
| 270 | 0.514766 | 0.0180224 | 0.03991542 |
| 306 | 0.584342 | 0.024183 | 0.04981049 |
| 342 | 0.489628 | 0.0273101 | 0.07453451 |
