Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

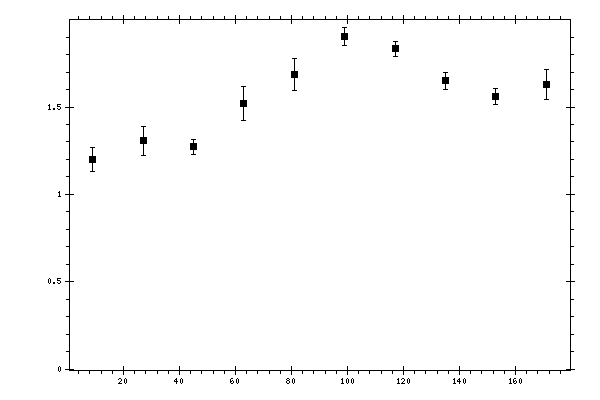

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.1989 | 0.0695584 | 0.19344283 |
| 27 | 1.30768 | 0.0831825 | 0.17172735 |
| 45 | 1.27215 | 0.0430481 | 0.15326858 |
| 63 | 1.52089 | 0.0985472 | 0.15002688 |
| 81 | 1.68434 | 0.0920528 | 0.16072643 |
| 99 | 1.9059 | 0.050911 | 0.15476095 |
| 117 | 1.83315 | 0.0415189 | 0.13963576 |
| 135 | 1.64947 | 0.0468418 | 0.13356863 |
| 153 | 1.56052 | 0.0435443 | 0.11868142 |
| 171 | 1.63089 | 0.0857567 | 0.12547547 |
