Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|

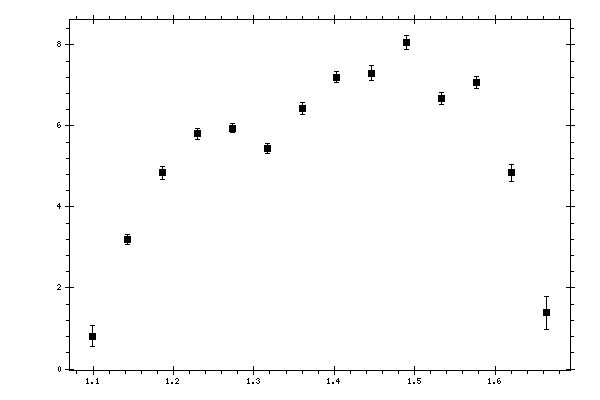

Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09954 | 0.814194 | 0.247927 | 0.06726678 |
| 1.14294 | 3.20128 | 0.125033 | 0.25456425 |
| 1.18634 | 4.84003 | 0.152327 | 0.3553468 |
| 1.22974 | 5.80342 | 0.139111 | 0.42463322 |
| 1.27314 | 5.94754 | 0.121989 | 0.44310455 |
| 1.31654 | 5.44908 | 0.127446 | 0.40643176 |
| 1.35994 | 6.42662 | 0.14857 | 0.48310736 |
| 1.40334 | 7.20196 | 0.140345 | 0.53923226 |
| 1.44673 | 7.29734 | 0.183631 | 0.59759977 |
| 1.49013 | 8.05631 | 0.174768 | 0.65088865 |
| 1.53353 | 6.67261 | 0.15234 | 0.77312251 |
| 1.57693 | 7.06477 | 0.148051 | 0.79641938 |
| 1.62033 | 4.83939 | 0.218781 | 0.72231687 |
| 1.66373 | 1.38755 | 0.408583 | 0.53177415 |
