Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

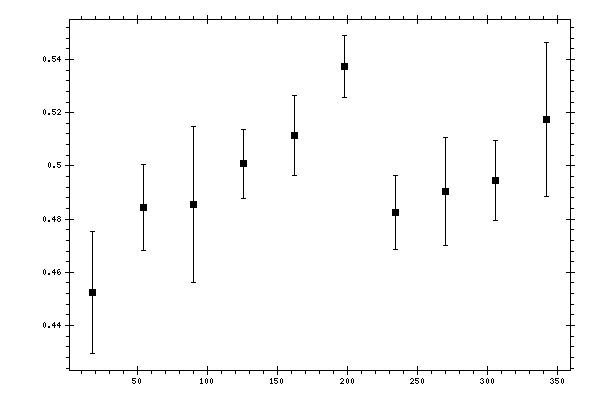

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.452385 | 0.0227758 | 0.08855354 |
| 54 | 0.484417 | 0.0161224 | 0.07032958 |
| 90 | 0.485389 | 0.0293377 | 0.05145034 |
| 126 | 0.500816 | 0.0129851 | 0.04284537 |
| 162 | 0.511416 | 0.0149163 | 0.03784527 |
| 198 | 0.537285 | 0.0115852 | 0.04059522 |
| 234 | 0.4826 | 0.013951 | 0.03704157 |
| 270 | 0.490334 | 0.0204076 | 0.04223118 |
| 306 | 0.49453 | 0.0148784 | 0.0458783 |
| 342 | 0.517383 | 0.0289133 | 0.07099998 |
