Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

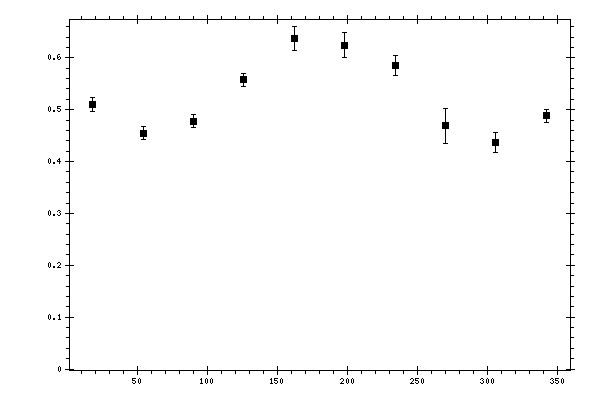

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.509548 | 0.0131185 | 0.0519069 |
| 54 | 0.455006 | 0.0119657 | 0.04539185 |
| 90 | 0.477881 | 0.0120502 | 0.04408568 |
| 126 | 0.557548 | 0.0128498 | 0.04640916 |
| 162 | 0.637476 | 0.0232167 | 0.05206574 |
| 198 | 0.624209 | 0.024281 | 0.05048071 |
| 234 | 0.58474 | 0.0198055 | 0.05164378 |
| 270 | 0.468963 | 0.0335107 | 0.04989226 |
| 306 | 0.436067 | 0.0192639 | 0.04564375 |
| 342 | 0.488449 | 0.012478 | 0.05173855 |
