Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcbn/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcbn/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

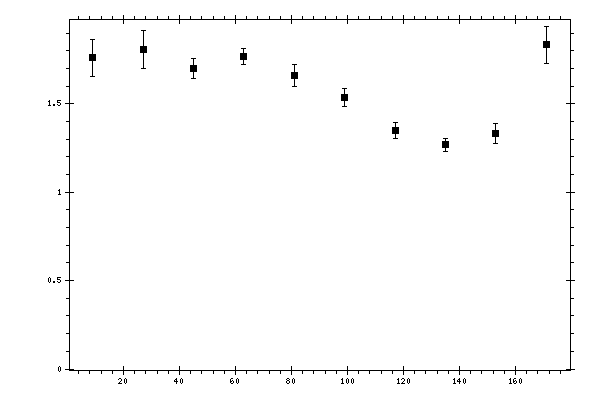

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.76093 | 0.104501 | 0.1986933 |
| 27 | 1.80661 | 0.107991 | 0.19218589 |
| 45 | 1.69895 | 0.057389 | 0.14523107 |
| 63 | 1.76853 | 0.046131 | 0.23569895 |
| 81 | 1.66317 | 0.0623283 | 0.1429607 |
| 99 | 1.53742 | 0.0508945 | 0.17062345 |
| 117 | 1.35003 | 0.0464168 | 0.11611304 |
| 135 | 1.26918 | 0.0372114 | 0.13066335 |
| 153 | 1.33184 | 0.0547199 | 0.13411602 |
| 171 | 1.83408 | 0.105529 | 0.25516011 |
