Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

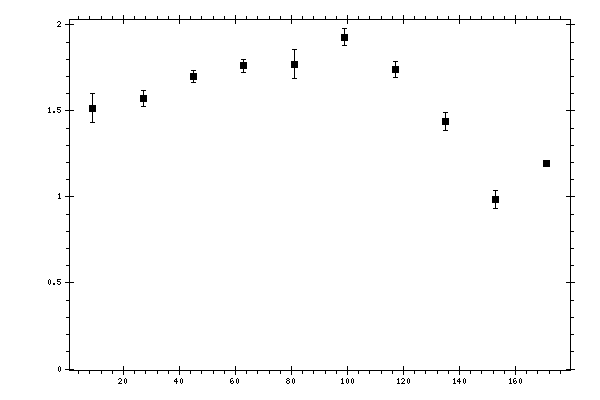

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.51513 | 0.08454 | 0.13049174 |
| 27 | 1.57191 | 0.0461816 | 0.13014616 |
| 45 | 1.702 | 0.0345234 | 0.13444198 |
| 63 | 1.76231 | 0.0374811 | 0.13837029 |
| 81 | 1.77284 | 0.0864659 | 0.13542059 |
| 99 | 1.92894 | 0.0476113 | 0.14248341 |
| 117 | 1.73913 | 0.0463772 | 0.14972364 |
| 135 | 1.43855 | 0.0517014 | 0.18905237 |
| 153 | 0.986249 | 0.0506545 | 0.29108427 |
| 171 | 1.19283 | 0.00981084 | 0.67175122 |
