Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|

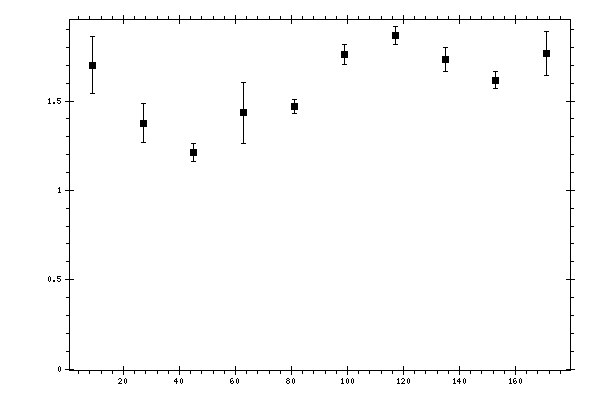

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.70183 | 0.160538 | 0.26445173 |
| 27 | 1.37573 | 0.108643 | 0.16500114 |
| 45 | 1.21098 | 0.0507487 | 0.14251769 |
| 63 | 1.43398 | 0.171936 | 0.19684277 |
| 81 | 1.46941 | 0.0372948 | 0.13082786 |
| 99 | 1.76136 | 0.0569373 | 0.13987042 |
| 117 | 1.86555 | 0.0510227 | 0.19567072 |
| 135 | 1.73289 | 0.0651072 | 0.12930664 |
| 153 | 1.61726 | 0.0488861 | 0.12108104 |
| 171 | 1.76642 | 0.122133 | 0.14071446 |
