Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|

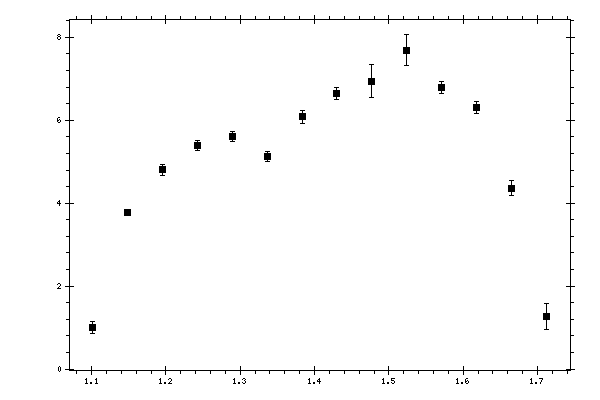

Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10133 | 1.00079 | 0.133806 | 0.08995209 |
| 1.1483 | 3.78291 | 0.0688228 | 0.32795253 |
| 1.19527 | 4.80166 | 0.127875 | 0.36028001 |
| 1.24224 | 5.3859 | 0.12074 | 0.40329444 |
| 1.28921 | 5.60905 | 0.11088 | 0.41959651 |
| 1.33618 | 5.12631 | 0.115983 | 0.38385165 |
| 1.38315 | 6.08253 | 0.151918 | 0.44844573 |
| 1.43012 | 6.63425 | 0.145464 | 0.48875809 |
| 1.47709 | 6.94546 | 0.39299 | 0.65058051 |
| 1.52406 | 7.68512 | 0.3736 | 0.71594975 |
| 1.57103 | 6.78251 | 0.140539 | 0.72867813 |
| 1.618 | 6.30885 | 0.145719 | 0.69478691 |
| 1.66497 | 4.36562 | 0.172929 | 0.6320363 |
| 1.71194 | 1.26641 | 0.321073 | 0.39768387 |
