Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

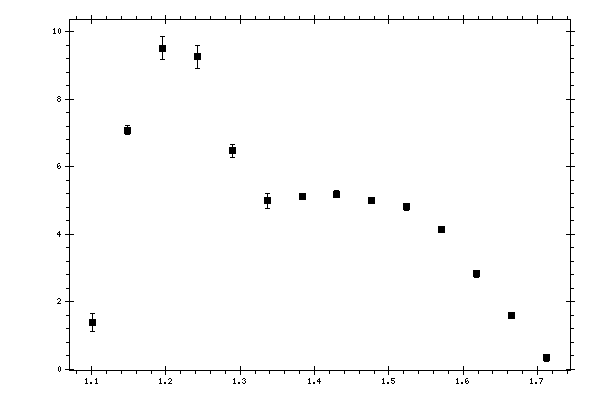

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10133 | 1.38128 | 0.278408 | 0.58473857 |
| 1.1483 | 7.0891 | 0.122893 | 1.02370814 |
| 1.19527 | 9.52204 | 0.34958 | 0.97713495 |
| 1.24224 | 9.25704 | 0.354549 | 0.95788325 |
| 1.28921 | 6.47289 | 0.193729 | 0.5362591 |
| 1.33618 | 4.98644 | 0.220724 | 0.41880983 |
| 1.38315 | 5.11777 | 0.101312 | 0.38435925 |
| 1.43012 | 5.1864 | 0.10064 | 0.38950019 |
| 1.47709 | 4.9958 | 0.0962606 | 0.37872016 |
| 1.52406 | 4.80979 | 0.0981044 | 0.36463051 |
| 1.57103 | 4.12816 | 0.0868525 | 0.31090619 |
| 1.618 | 2.82817 | 0.104932 | 0.2130952 |
| 1.66497 | 1.58322 | 0.0458967 | 0.14852065 |
| 1.71194 | 0.331856 | 0.100248 | 0.03195867 |
