Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

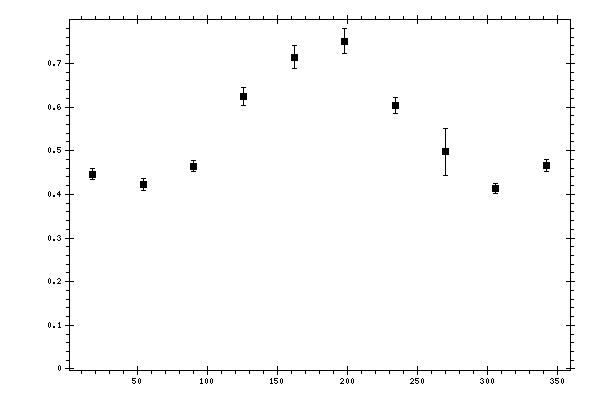

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.445727 | 0.0125996 | 0.05019631 |
| 54 | 0.421663 | 0.0137004 | 0.04375918 |
| 90 | 0.46479 | 0.0134114 | 0.04199699 |
| 126 | 0.623951 | 0.0202792 | 0.0522105 |
| 162 | 0.714634 | 0.0270367 | 0.05509588 |
| 198 | 0.751251 | 0.0293 | 0.06077591 |
| 234 | 0.603808 | 0.0175725 | 0.06375173 |
| 270 | 0.497167 | 0.0533385 | 0.05954766 |
| 306 | 0.413487 | 0.0112913 | 0.04168834 |
| 342 | 0.466304 | 0.0140416 | 0.05199063 |
