Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

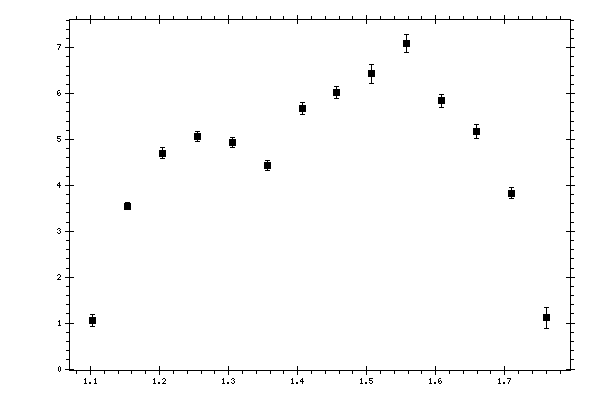

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10311 | 1.05101 | 0.12744 | 0.08911745 |
| 1.15365 | 3.55072 | 0.0693351 | 0.29008106 |
| 1.2042 | 4.69996 | 0.116951 | 0.34733521 |
| 1.25474 | 5.06859 | 0.112618 | 0.37401429 |
| 1.30528 | 4.93538 | 0.101631 | 0.36346179 |
| 1.35582 | 4.44028 | 0.107147 | 0.32744162 |
| 1.40636 | 5.67223 | 0.137149 | 0.39569881 |
| 1.45691 | 6.02031 | 0.133125 | 0.41975591 |
| 1.50745 | 6.42724 | 0.203289 | 0.46170313 |
| 1.55799 | 7.09002 | 0.193554 | 0.50608761 |
| 1.60853 | 5.84472 | 0.142341 | 0.61894642 |
| 1.65907 | 5.1779 | 0.151229 | 0.57719071 |
| 1.70962 | 3.82648 | 0.122154 | 0.52281264 |
| 1.76016 | 1.11362 | 0.226434 | 0.35281054 |
