Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

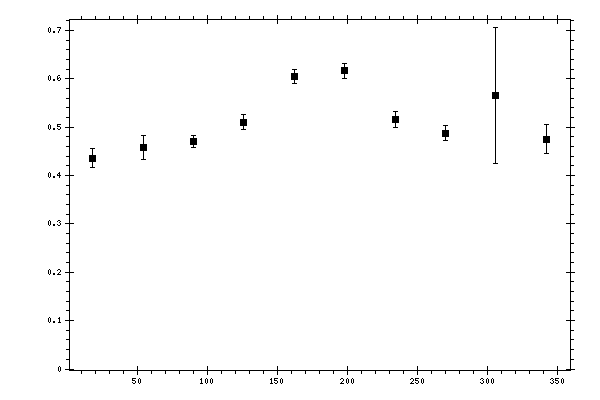

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.436093 | 0.0200274 | 0.05132492 |
| 54 | 0.458795 | 0.0245995 | 0.04829049 |
| 90 | 0.470206 | 0.0131958 | 0.03545528 |
| 126 | 0.510736 | 0.0154447 | 0.03816312 |
| 162 | 0.604204 | 0.0147085 | 0.04391278 |
| 198 | 0.616524 | 0.0152023 | 0.0451902 |
| 234 | 0.516006 | 0.0160507 | 0.03854813 |
| 270 | 0.487915 | 0.0151436 | 0.04287339 |
| 306 | 0.565779 | 0.141318 | 0.12031241 |
| 342 | 0.475569 | 0.0295372 | 0.05431847 |
