Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

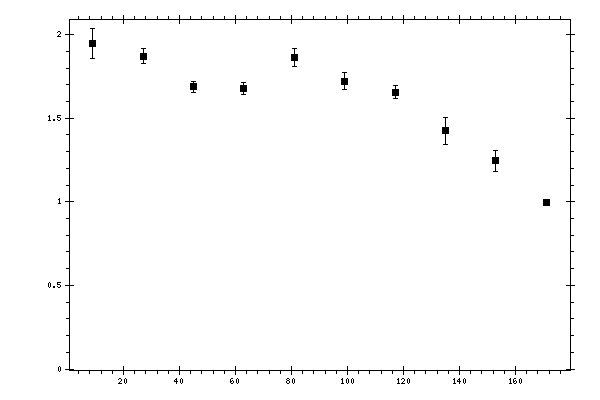

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.94478 | 0.0902433 | 0.21264365 |
| 27 | 1.87178 | 0.0454558 | 0.16216194 |
| 45 | 1.6891 | 0.0326449 | 0.1373973 |
| 63 | 1.6785 | 0.0380945 | 0.13503423 |
| 81 | 1.86562 | 0.0533676 | 0.137059 |
| 99 | 1.72212 | 0.0508649 | 0.12437841 |
| 117 | 1.65556 | 0.0404389 | 0.13416767 |
| 135 | 1.42355 | 0.0778463 | 0.14141957 |
| 153 | 1.24416 | 0.0639447 | 0.21723765 |
| 171 | 0.99626 | 0.00975524 | 0.59838156 |
