Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

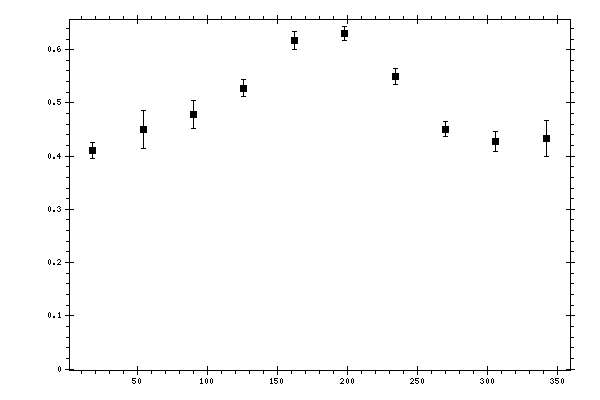

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.410882 | 0.0154576 | 0.04633992 |
| 54 | 0.449354 | 0.0356175 | 0.04936441 |
| 90 | 0.478148 | 0.0265602 | 0.0380896 |
| 126 | 0.527318 | 0.0162493 | 0.03900308 |
| 162 | 0.616794 | 0.0174164 | 0.04876242 |
| 198 | 0.630358 | 0.0129696 | 0.04529283 |
| 234 | 0.549466 | 0.0152441 | 0.0424636 |
| 270 | 0.450516 | 0.0144679 | 0.03674274 |
| 306 | 0.427181 | 0.0185593 | 0.03626146 |
| 342 | 0.433252 | 0.0341025 | 0.08995848 |
