Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

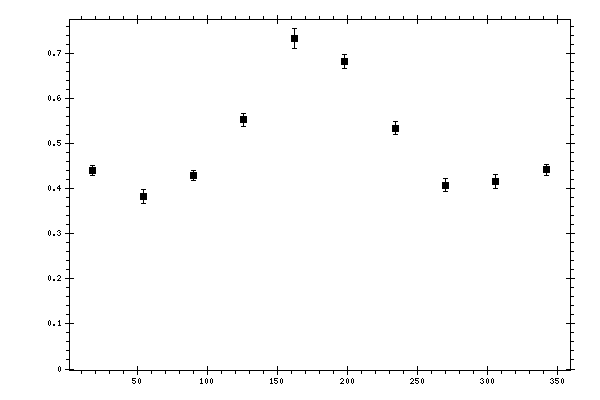

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.44177 | 0.0110696 | 0.04508516 |
| 54 | 0.38267 | 0.015124 | 0.03490811 |
| 90 | 0.42988 | 0.0111555 | 0.0345551 |
| 126 | 0.552837 | 0.0141934 | 0.0419565 |
| 162 | 0.733626 | 0.0218155 | 0.05375707 |
| 198 | 0.682799 | 0.0151933 | 0.05054326 |
| 234 | 0.534803 | 0.014048 | 0.04091563 |
| 270 | 0.408156 | 0.0143287 | 0.03548083 |
| 306 | 0.416303 | 0.0147087 | 0.03693101 |
| 342 | 0.442755 | 0.0120634 | 0.04673252 |
