Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

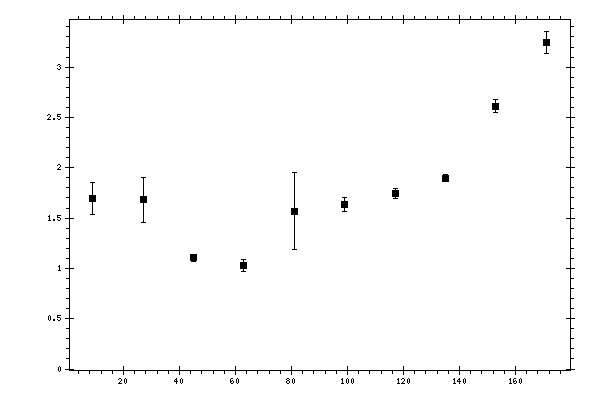

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.6905 | 0.159868 | 0.26583357 |
| 27 | 1.68005 | 0.220519 | 0.26322942 |
| 45 | 1.10515 | 0.0349423 | 0.09839874 |
| 63 | 1.02649 | 0.0600484 | 0.08793801 |
| 81 | 1.56804 | 0.381608 | 0.37352489 |
| 99 | 1.6356 | 0.0708389 | 0.13085607 |
| 117 | 1.74845 | 0.0501046 | 0.12966922 |
| 135 | 1.89814 | 0.0384107 | 0.14001815 |
| 153 | 2.61236 | 0.0612886 | 0.19321 |
| 171 | 3.24144 | 0.108147 | 0.25379388 |
