Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|

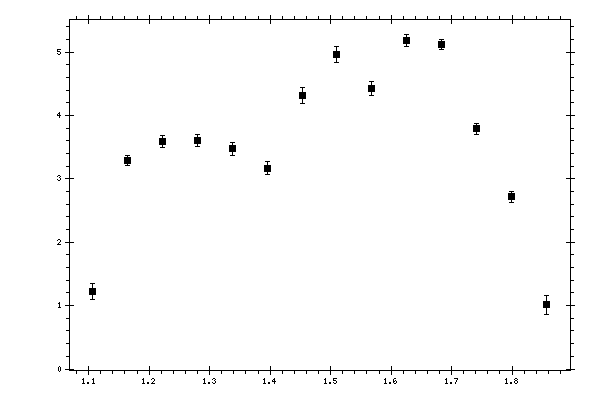

Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10668 | 1.22514 | 0.123472 | 0.10628825 |
| 1.16437 | 3.29307 | 0.0753113 | 0.28117289 |
| 1.22205 | 3.58887 | 0.0971785 | 0.26301431 |
| 1.27974 | 3.60551 | 0.096954 | 0.2642157 |
| 1.33742 | 3.4759 | 0.0997721 | 0.26406407 |
| 1.39511 | 3.1696 | 0.104482 | 0.24107249 |
| 1.45279 | 4.31448 | 0.131635 | 0.29496519 |
| 1.51048 | 4.9642 | 0.122719 | 0.33891129 |
| 1.56816 | 4.4225 | 0.110241 | 0.32050179 |
| 1.62585 | 5.18326 | 0.10183 | 0.37232356 |
| 1.68353 | 5.11754 | 0.076319 | 0.45307527 |
| 1.74122 | 3.78904 | 0.0886949 | 0.36986929 |
| 1.7989 | 2.71453 | 0.0933964 | 0.37312027 |
| 1.85659 | 1.01205 | 0.152959 | 0.27791389 |
