Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

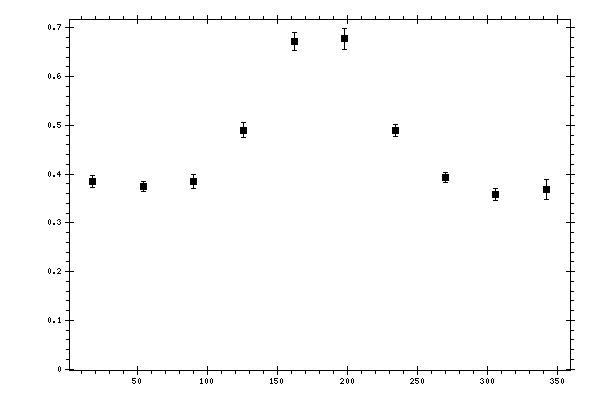

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.385207 | 0.0128532 | 0.0411192 |
| 54 | 0.375071 | 0.0107462 | 0.03211035 |
| 90 | 0.385106 | 0.0149239 | 0.03136869 |
| 126 | 0.489918 | 0.0152477 | 0.03674661 |
| 162 | 0.673043 | 0.0186059 | 0.04981291 |
| 198 | 0.677741 | 0.0209964 | 0.04979563 |
| 234 | 0.489105 | 0.012807 | 0.03618499 |
| 270 | 0.39315 | 0.0103682 | 0.03053894 |
| 306 | 0.358303 | 0.0114496 | 0.03230142 |
| 342 | 0.368315 | 0.0201651 | 0.04106532 |
