Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|

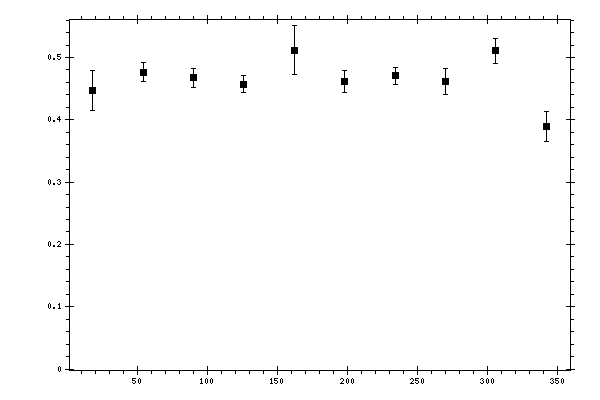

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.447033 | 0.0313485 | 0.05029402 |
| 54 | 0.476636 | 0.014949 | 0.03819422 |
| 90 | 0.467474 | 0.0150135 | 0.03398487 |
| 126 | 0.457285 | 0.0136434 | 0.03405159 |
| 162 | 0.511643 | 0.0392849 | 0.04748647 |
| 198 | 0.461654 | 0.0174617 | 0.03685499 |
| 234 | 0.470638 | 0.014073 | 0.03475786 |
| 270 | 0.461779 | 0.0206237 | 0.03488423 |
| 306 | 0.510629 | 0.0205098 | 0.04100199 |
| 342 | 0.389009 | 0.0243508 | 0.04124122 |
