Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcbn/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcbn/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

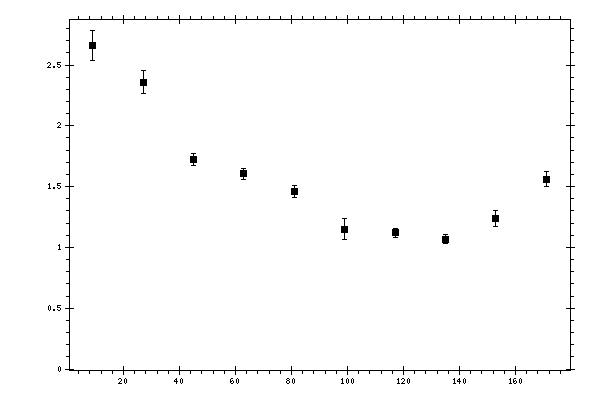

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 2.65913 | 0.123378 | 0.28966086 |
| 27 | 2.35786 | 0.0929901 | 0.2052437 |
| 45 | 1.72337 | 0.0497399 | 0.1290395 |
| 63 | 1.60582 | 0.0462028 | 0.13239207 |
| 81 | 1.46179 | 0.0487342 | 0.11017303 |
| 99 | 1.14776 | 0.086008 | 0.08562843 |
| 117 | 1.12082 | 0.03811 | 0.08319107 |
| 135 | 1.069 | 0.0381377 | 0.08412085 |
| 153 | 1.24053 | 0.0666613 | 0.12826248 |
| 171 | 1.56136 | 0.0639873 | 0.30361147 |
