Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

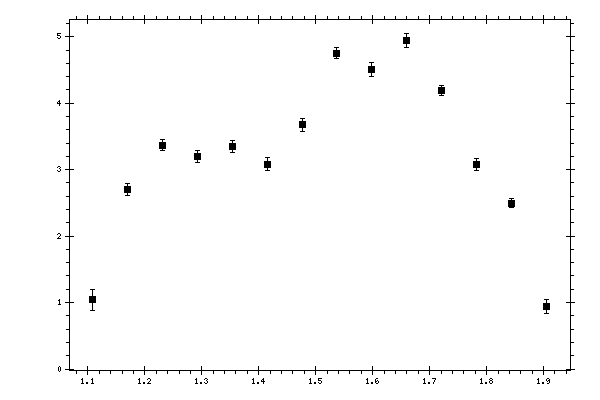

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10847 | 1.04062 | 0.154591 | 0.08739275 |
| 1.16973 | 2.7024 | 0.0959304 | 0.22413035 |
| 1.23098 | 3.36943 | 0.0885949 | 0.24131073 |
| 1.29224 | 3.19237 | 0.0910186 | 0.22874586 |
| 1.3535 | 3.34647 | 0.0918018 | 0.24047159 |
| 1.41475 | 3.08344 | 0.0956372 | 0.22171163 |
| 1.47601 | 3.67318 | 0.0932404 | 0.25504718 |
| 1.53726 | 4.75493 | 0.0819507 | 0.32948637 |
| 1.59852 | 4.49983 | 0.104821 | 0.3235404 |
| 1.65978 | 4.94119 | 0.10003 | 0.35435137 |
| 1.72103 | 4.18861 | 0.0715946 | 0.39656423 |
| 1.78229 | 3.07721 | 0.0835288 | 0.31209952 |
| 1.84355 | 2.49342 | 0.0658939 | 0.29985323 |
| 1.9048 | 0.942651 | 0.107169 | 0.23577662 |
