Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

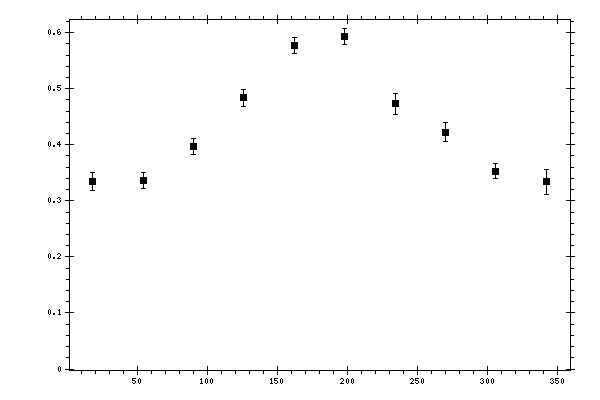

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.33496 | 0.0158566 | 0.03418758 |
| 54 | 0.336997 | 0.0141895 | 0.02956159 |
| 90 | 0.396512 | 0.0140862 | 0.03102888 |
| 126 | 0.484081 | 0.0153812 | 0.03606689 |
| 162 | 0.577011 | 0.0147925 | 0.04130153 |
| 198 | 0.593564 | 0.014193 | 0.0424755 |
| 234 | 0.472957 | 0.0191354 | 0.03479951 |
| 270 | 0.422239 | 0.0167031 | 0.03576213 |
| 306 | 0.352994 | 0.0133612 | 0.0302901 |
| 342 | 0.333943 | 0.0225194 | 0.03868056 |
