Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

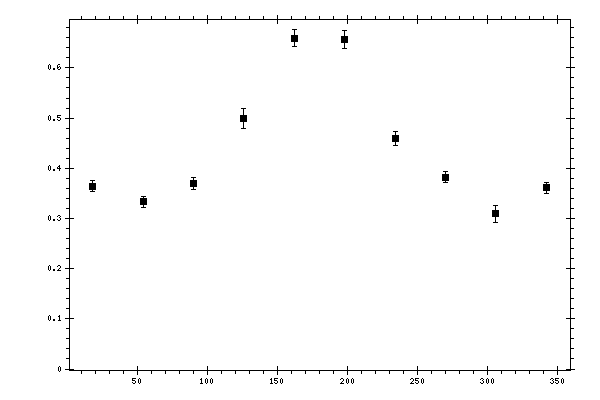

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.364292 | 0.0109955 | 0.03509834 |
| 54 | 0.333319 | 0.0109567 | 0.0269365 |
| 90 | 0.370565 | 0.0119285 | 0.0278196 |
| 126 | 0.499511 | 0.019515 | 0.0402907 |
| 162 | 0.659063 | 0.0172073 | 0.04757931 |
| 198 | 0.656704 | 0.0183813 | 0.04694045 |
| 234 | 0.459651 | 0.014117 | 0.03351654 |
| 270 | 0.382074 | 0.0111502 | 0.0285008 |
| 306 | 0.309521 | 0.0166196 | 0.02666655 |
| 342 | 0.361312 | 0.0107006 | 0.03544161 |
