Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcbn/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcbn/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

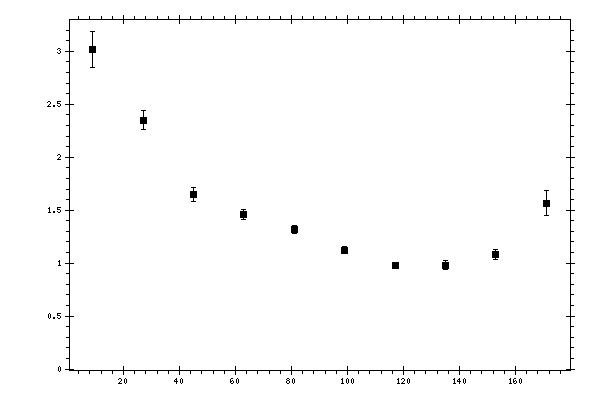

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 3.01399 | 0.170109 | 0.28979122 |
| 27 | 2.35179 | 0.086266 | 0.19170879 |
| 45 | 1.64506 | 0.0658274 | 0.12298144 |
| 63 | 1.45915 | 0.0430218 | 0.10578673 |
| 81 | 1.31979 | 0.0381289 | 0.09932296 |
| 99 | 1.12166 | 0.0342371 | 0.08103341 |
| 117 | 0.974532 | 0.0270764 | 0.07693133 |
| 135 | 0.980823 | 0.0451104 | 0.0774125 |
| 153 | 1.08088 | 0.046829 | 0.12064489 |
| 171 | 1.56556 | 0.117842 | 0.27879538 |
