Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

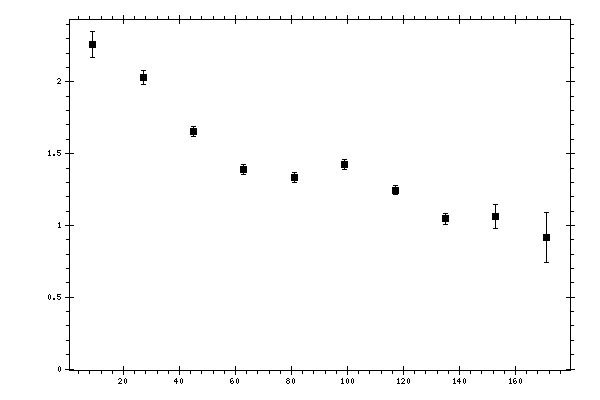

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 2.25955 | 0.091193 | 0.18642926 |
| 27 | 2.0278 | 0.0480717 | 0.16087446 |
| 45 | 1.65326 | 0.0351281 | 0.12649426 |
| 63 | 1.38989 | 0.0337049 | 0.1060366 |
| 81 | 1.33352 | 0.033881 | 0.09457636 |
| 99 | 1.42462 | 0.038138 | 0.10154081 |
| 117 | 1.24676 | 0.0341207 | 0.09112689 |
| 135 | 1.04617 | 0.0369432 | 0.10084569 |
| 153 | 1.0596 | 0.0836255 | 0.12382034 |
| 171 | 0.916978 | 0.172949 | 0.438624 |
