Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|

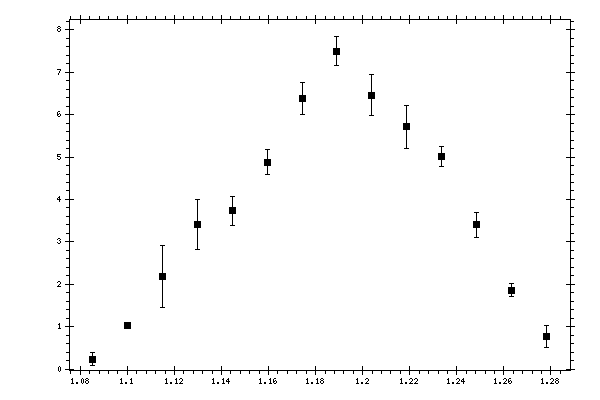

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08526 | 0.23066 | 0.158549 | 0.23119911 |
| 1.10008 | 1.024 | 0.0752489 | 0.43925591 |
| 1.11491 | 2.18111 | 0.734888 | 0.52541032 |
| 1.12974 | 3.41003 | 0.587733 | 0.72311288 |
| 1.14457 | 3.72835 | 0.336191 | 0.48661988 |
| 1.15939 | 4.87811 | 0.293913 | 0.56439607 |
| 1.17422 | 6.39192 | 0.376192 | 1.08353077 |
| 1.18905 | 7.49863 | 0.347323 | 1.24061426 |
| 1.20388 | 6.4592 | 0.483412 | 0.76600549 |
| 1.21871 | 5.71304 | 0.514012 | 0.71390058 |
| 1.23353 | 5.01283 | 0.244861 | 0.51976262 |
| 1.24836 | 3.39827 | 0.297395 | 0.4172491 |
| 1.26319 | 1.86304 | 0.163099 | 0.23837818 |
| 1.27802 | 0.772289 | 0.253323 | 0.13604824 |
