Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

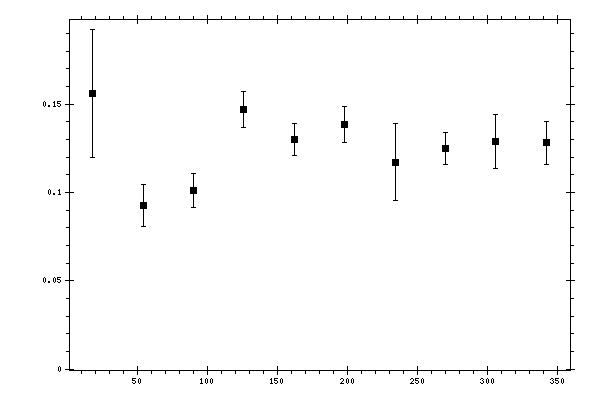

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.155767 | 0.0362409 | 0.03168509 |
| 54 | 0.0925728 | 0.0118667 | 0.03755718 |
| 90 | 0.100918 | 0.00962836 | 0.01241186 |
| 126 | 0.146681 | 0.0101445 | 0.01270292 |
| 162 | 0.129898 | 0.00924534 | 0.01247855 |
| 198 | 0.138402 | 0.010111 | 0.01191626 |
| 234 | 0.116986 | 0.0218765 | 0.01298167 |
| 270 | 0.12491 | 0.00916298 | 0.01079004 |
| 306 | 0.128804 | 0.0154461 | 0.01936445 |
| 342 | 0.128007 | 0.0123855 | 0.02862066 |
