Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

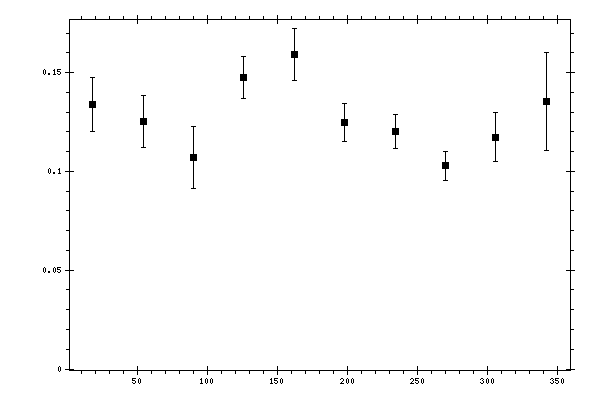

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.133805 | 0.0138543 | 0.04972506 |
| 54 | 0.125145 | 0.0130495 | 0.0197847 |
| 90 | 0.107113 | 0.0157227 | 0.01568649 |
| 126 | 0.147498 | 0.0104385 | 0.01837724 |
| 162 | 0.159351 | 0.0132045 | 0.01403872 |
| 198 | 0.124616 | 0.00949167 | 0.01205818 |
| 234 | 0.120251 | 0.00845701 | 0.01025207 |
| 270 | 0.102863 | 0.00726598 | 0.01196691 |
| 306 | 0.117257 | 0.0123973 | 0.03023703 |
| 342 | 0.135487 | 0.0248125 | 0.03409904 |
