Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

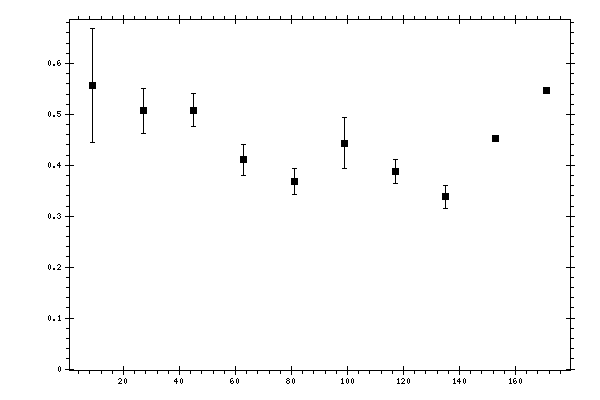

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.55607 | 0.111817 | 0.11028039 |
| 27 | 0.507364 | 0.0439376 | 0.05884373 |
| 45 | 0.508227 | 0.0323538 | 0.04535898 |
| 63 | 0.410554 | 0.0309735 | 0.03808384 |
| 81 | 0.368169 | 0.025313 | 0.03273317 |
| 99 | 0.443719 | 0.0500101 | 0.0634009 |
| 117 | 0.388645 | 0.0234366 | 0.09142518 |
| 135 | 0.337956 | 0.0219296 | 0.11566007 |
| 153 | 0.453615 | 0.0022472 | 0.25395393 |
| 171 | 0.546492 | 0.00054127 | 0.30226475 |
