Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

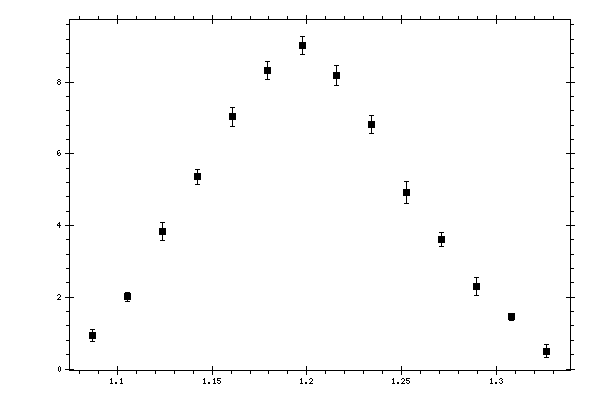

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08704 | 0.936052 | 0.175011 | 0.13185133 |
| 1.10544 | 2.01572 | 0.119262 | 0.21844667 |
| 1.12384 | 3.82805 | 0.253743 | 0.44076824 |
| 1.14224 | 5.35859 | 0.214466 | 0.53740334 |
| 1.16064 | 7.02981 | 0.275066 | 0.82696656 |
| 1.17904 | 8.31863 | 0.252861 | 0.89184231 |
| 1.19744 | 9.02603 | 0.260959 | 1.11765445 |
| 1.21584 | 8.18127 | 0.2741 | 1.06916272 |
| 1.23423 | 6.81942 | 0.262093 | 0.97632479 |
| 1.25263 | 4.9157 | 0.3087 | 0.85048716 |
| 1.27103 | 3.6086 | 0.197256 | 0.64379845 |
| 1.28943 | 2.30146 | 0.247 | 0.58574418 |
| 1.30783 | 1.45612 | 0.104151 | 0.33419335 |
| 1.32623 | 0.49332 | 0.178936 | 0.30008406 |
