Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|

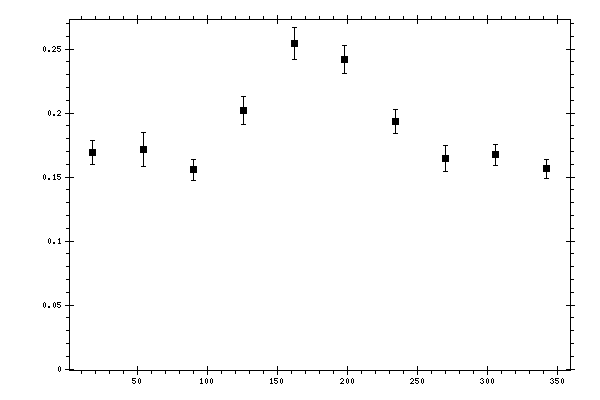

Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.168851 | 0.0094302 | 0.02239432 |
| 54 | 0.171517 | 0.0131545 | 0.02291493 |
| 90 | 0.155637 | 0.00834888 | 0.02295063 |
| 126 | 0.2022 | 0.0108991 | 0.02866639 |
| 162 | 0.254278 | 0.0124698 | 0.0338332 |
| 198 | 0.24164 | 0.0108129 | 0.03433302 |
| 234 | 0.1935 | 0.00965212 | 0.0275343 |
| 270 | 0.164217 | 0.0102443 | 0.02558129 |
| 306 | 0.167229 | 0.00848843 | 0.02195516 |
| 342 | 0.156352 | 0.00750653 | 0.02160395 |
