Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|

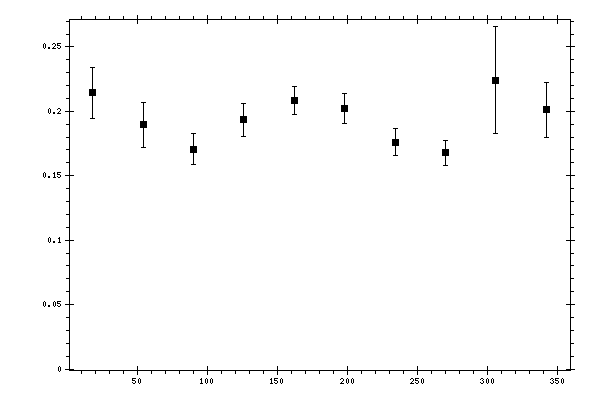

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.2143 | 0.0199171 | 0.04337799 |
| 54 | 0.189701 | 0.0174938 | 0.02597242 |
| 90 | 0.170743 | 0.0123952 | 0.01526556 |
| 126 | 0.193453 | 0.012673 | 0.02198091 |
| 162 | 0.208647 | 0.0109718 | 0.01574614 |
| 198 | 0.202437 | 0.0115451 | 0.0194621 |
| 234 | 0.175863 | 0.0104236 | 0.01453901 |
| 270 | 0.167671 | 0.00974318 | 0.01684183 |
| 306 | 0.224001 | 0.0414901 | 0.04221406 |
| 342 | 0.201296 | 0.0212868 | 0.04246835 |
