Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

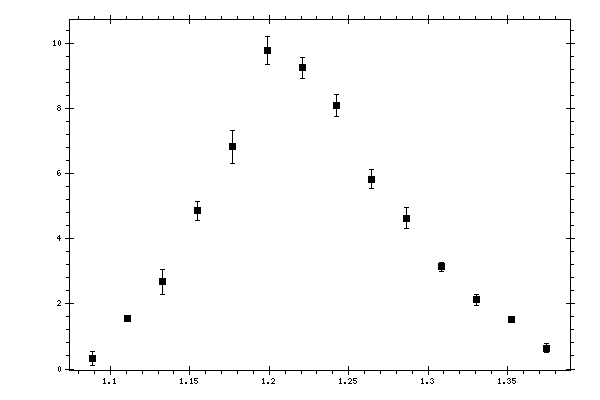

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08883 | 0.327213 | 0.211782 | 0.20799092 |
| 1.1108 | 1.55606 | 0.0971161 | 0.29321181 |
| 1.13277 | 2.67738 | 0.392121 | 0.48834851 |
| 1.15474 | 4.85884 | 0.291078 | 0.61634749 |
| 1.17671 | 6.82621 | 0.511534 | 0.76919232 |
| 1.19868 | 9.79121 | 0.427117 | 0.95484319 |
| 1.22065 | 9.25248 | 0.318168 | 0.82655569 |
| 1.24262 | 8.10389 | 0.339968 | 0.74692765 |
| 1.26459 | 5.82993 | 0.287018 | 0.66439825 |
| 1.28656 | 4.63445 | 0.321916 | 0.54442819 |
| 1.30853 | 3.13955 | 0.135217 | 0.24906351 |
| 1.3305 | 2.13044 | 0.164146 | 0.18688313 |
| 1.35247 | 1.52581 | 0.0835186 | 0.16239644 |
| 1.37444 | 0.639126 | 0.129045 | 0.08002371 |
