Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

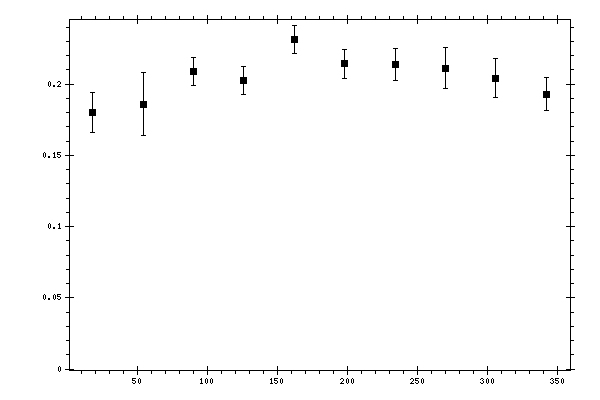

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.180065 | 0.0138962 | 0.03532654 |
| 54 | 0.185872 | 0.0219287 | 0.02603133 |
| 90 | 0.208969 | 0.00977433 | 0.01594836 |
| 126 | 0.202313 | 0.00979671 | 0.01682559 |
| 162 | 0.231182 | 0.00988202 | 0.01947113 |
| 198 | 0.214342 | 0.0101931 | 0.02000541 |
| 234 | 0.213645 | 0.011437 | 0.01771717 |
| 270 | 0.211213 | 0.0144264 | 0.01635645 |
| 306 | 0.204043 | 0.0137677 | 0.02401021 |
| 342 | 0.192821 | 0.0116737 | 0.04592294 |
