Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

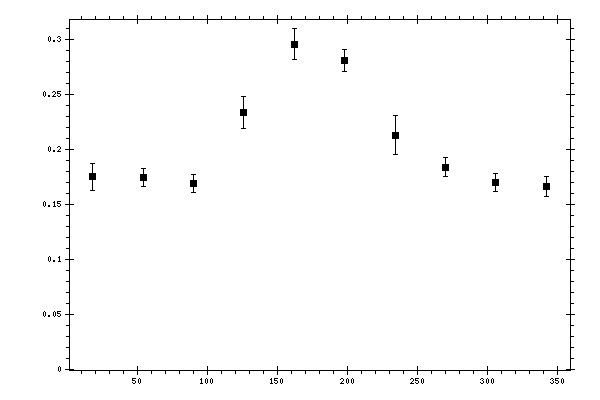

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.174871 | 0.0121391 | 0.02444753 |
| 54 | 0.173946 | 0.00824731 | 0.02176633 |
| 90 | 0.168878 | 0.00807111 | 0.02391188 |
| 126 | 0.233743 | 0.0144771 | 0.03145524 |
| 162 | 0.295674 | 0.0142714 | 0.03545757 |
| 198 | 0.280851 | 0.00993274 | 0.03562815 |
| 234 | 0.212827 | 0.0175234 | 0.02924383 |
| 270 | 0.183798 | 0.0084258 | 0.02418583 |
| 306 | 0.169681 | 0.00788604 | 0.02138037 |
| 342 | 0.165852 | 0.009231 | 0.02240606 |
