Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

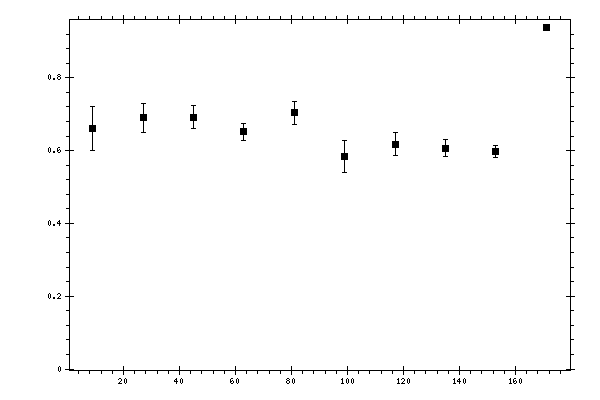

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.660768 | 0.0592484 | 0.06260848 |
| 27 | 0.689552 | 0.0404065 | 0.05344577 |
| 45 | 0.691549 | 0.0316098 | 0.06269368 |
| 63 | 0.651491 | 0.0241824 | 0.04927682 |
| 81 | 0.703326 | 0.031411 | 0.0518824 |
| 99 | 0.584633 | 0.0437157 | 0.05888268 |
| 117 | 0.617879 | 0.0327622 | 0.08991619 |
| 135 | 0.605933 | 0.0232348 | 0.15563694 |
| 153 | 0.598253 | 0.0164483 | 0.32215899 |
| 171 | 0.93739 | 0.00137793 | 0.50926367 |
