Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

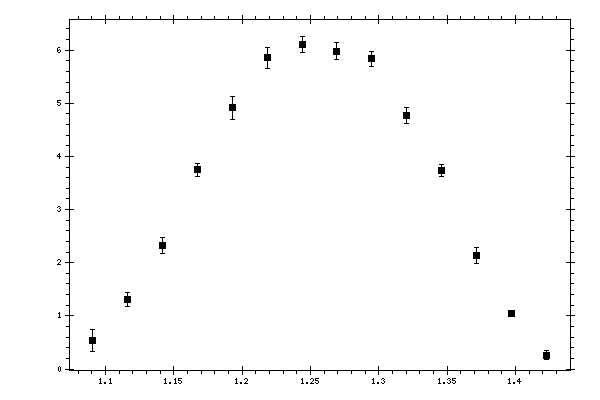

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09061 | 0.534536 | 0.201762 | 0.08030877 |
| 1.11615 | 1.30719 | 0.12902 | 0.17114144 |
| 1.1417 | 2.32524 | 0.155386 | 0.22371348 |
| 1.16724 | 3.75027 | 0.122353 | 0.31671483 |
| 1.19278 | 4.91367 | 0.217564 | 0.49297665 |
| 1.21832 | 5.85638 | 0.199285 | 0.56403196 |
| 1.24386 | 6.10827 | 0.154603 | 0.64965326 |
| 1.26941 | 5.97934 | 0.156261 | 0.64252727 |
| 1.29495 | 5.83944 | 0.1403 | 0.725526 |
| 1.32049 | 4.77357 | 0.155175 | 0.67019487 |
| 1.34603 | 3.73824 | 0.116576 | 0.55318023 |
| 1.37157 | 2.13418 | 0.154286 | 0.46100619 |
| 1.39712 | 1.0512 | 0.0409003 | 0.21990145 |
| 1.42266 | 0.255873 | 0.0829005 | 0.18956578 |
