Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|

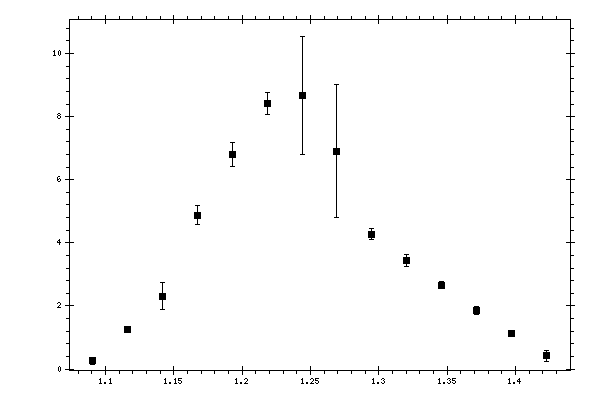

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09061 | 0.254153 | 0.104405 | 0.15495109 |
| 1.11615 | 1.2369 | 0.0473264 | 0.18629752 |
| 1.1417 | 2.30359 | 0.427195 | 0.48893188 |
| 1.16724 | 4.87483 | 0.293663 | 0.73800834 |
| 1.19278 | 6.80275 | 0.374643 | 0.71220364 |
| 1.21832 | 8.4159 | 0.336829 | 0.81080696 |
| 1.24386 | 8.66613 | 1.8773 | 1.737881 |
| 1.26941 | 6.90034 | 2.10383 | 1.39102948 |
| 1.29495 | 4.27687 | 0.166324 | 0.38095665 |
| 1.32049 | 3.43234 | 0.185662 | 0.31343504 |
| 1.34603 | 2.65669 | 0.109683 | 0.22639954 |
| 1.37157 | 1.86108 | 0.131046 | 0.16657695 |
| 1.39712 | 1.12178 | 0.10305 | 0.16418122 |
| 1.42266 | 0.412515 | 0.169935 | 0.06419118 |
