Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

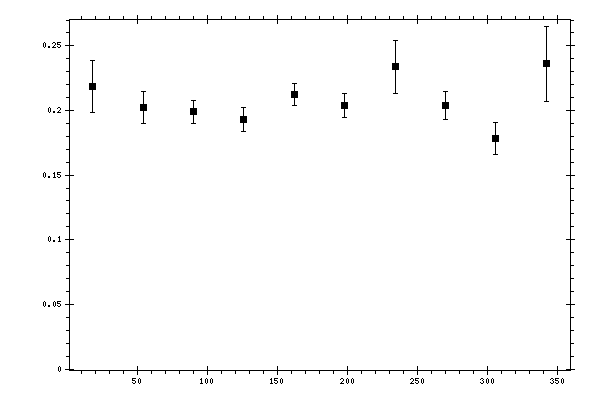

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.218918 | 0.020155 | 0.03922071 |
| 54 | 0.202443 | 0.0124147 | 0.01978033 |
| 90 | 0.198916 | 0.00880134 | 0.01715881 |
| 126 | 0.19317 | 0.00935989 | 0.01653337 |
| 162 | 0.212298 | 0.0086868 | 0.01817893 |
| 198 | 0.204156 | 0.00930427 | 0.01686128 |
| 234 | 0.233816 | 0.0204265 | 0.03035317 |
| 270 | 0.204043 | 0.01069 | 0.020894 |
| 306 | 0.178486 | 0.0121619 | 0.02056333 |
| 342 | 0.236219 | 0.0288796 | 0.03904739 |
