Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

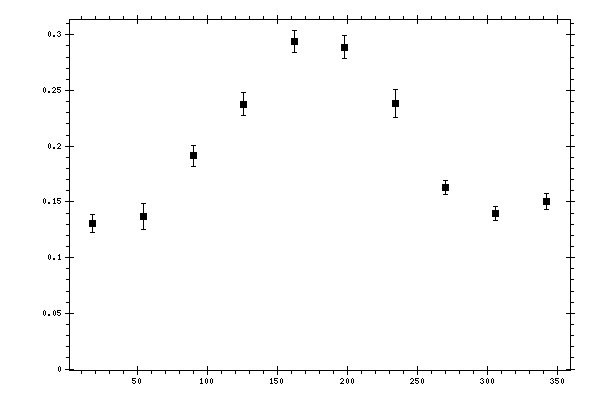

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.130655 | 0.00775256 | 0.01828928 |
| 54 | 0.137085 | 0.0117885 | 0.02027991 |
| 90 | 0.19129 | 0.00930078 | 0.02175336 |
| 126 | 0.237727 | 0.0102985 | 0.02634083 |
| 162 | 0.294324 | 0.00986074 | 0.033212 |
| 198 | 0.288996 | 0.00998601 | 0.03355586 |
| 234 | 0.238552 | 0.0123853 | 0.02665652 |
| 270 | 0.162682 | 0.00630274 | 0.02178045 |
| 306 | 0.139619 | 0.00634082 | 0.01771272 |
| 342 | 0.150451 | 0.00717962 | 0.01980161 |
