Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|

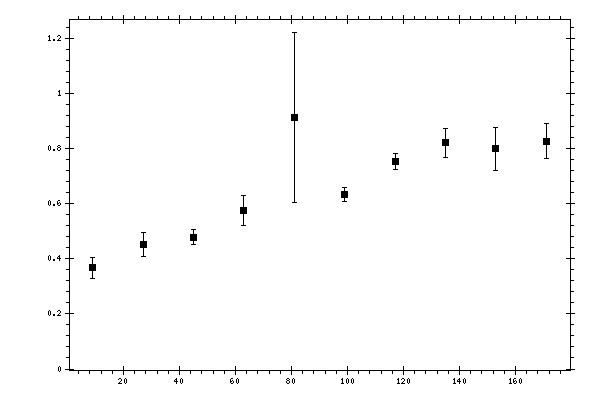

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.367459 | 0.0392797 | 0.09279378 |
| 27 | 0.450817 | 0.0438975 | 0.09285593 |
| 45 | 0.479308 | 0.0284363 | 0.07912603 |
| 63 | 0.575307 | 0.0534076 | 0.08674674 |
| 81 | 0.914096 | 0.308642 | 0.25614402 |
| 99 | 0.632961 | 0.0247182 | 0.05469644 |
| 117 | 0.754221 | 0.029311 | 0.06322659 |
| 135 | 0.820853 | 0.0512173 | 0.07145275 |
| 153 | 0.799937 | 0.0785418 | 0.07291685 |
| 171 | 0.827743 | 0.0646744 | 0.07311806 |
