Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

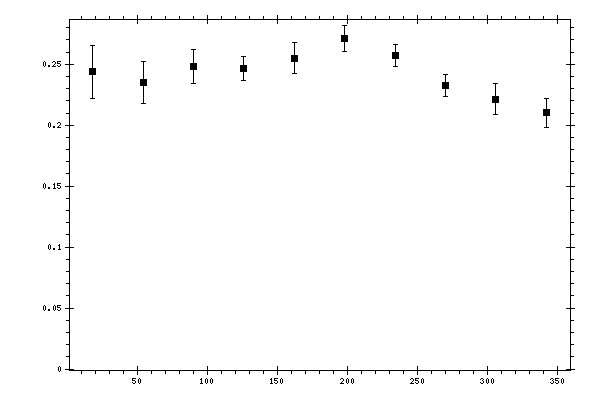

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.24386 | 0.0218789 | 0.03910899 |
| 54 | 0.234855 | 0.0173682 | 0.0235055 |
| 90 | 0.24816 | 0.0143018 | 0.01932503 |
| 126 | 0.246675 | 0.00981166 | 0.01992888 |
| 162 | 0.255098 | 0.0124979 | 0.02220952 |
| 198 | 0.271309 | 0.0108246 | 0.02023036 |
| 234 | 0.257494 | 0.00903579 | 0.01949249 |
| 270 | 0.232649 | 0.00881271 | 0.01816739 |
| 306 | 0.221474 | 0.0127443 | 0.02487067 |
| 342 | 0.21012 | 0.0119543 | 0.03615541 |
