Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|

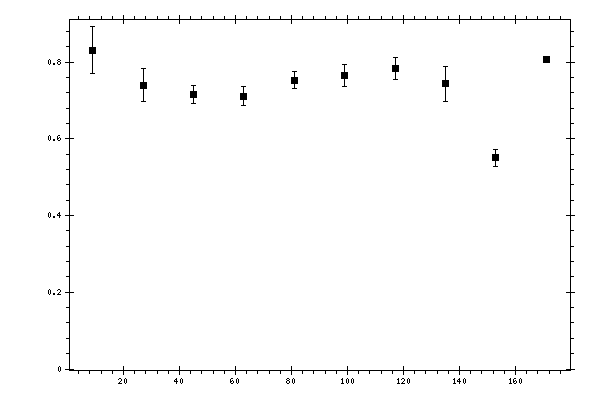

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.831158 | 0.0603144 | 0.07960106 |
| 27 | 0.740108 | 0.0418416 | 0.06594514 |
| 45 | 0.714879 | 0.0238664 | 0.05687225 |
| 63 | 0.711211 | 0.0240904 | 0.05488225 |
| 81 | 0.753126 | 0.0225888 | 0.05849904 |
| 99 | 0.765507 | 0.028238 | 0.05718498 |
| 117 | 0.782343 | 0.0288469 | 0.08488266 |
| 135 | 0.743184 | 0.0461721 | 0.15698496 |
| 153 | 0.550029 | 0.0222116 | 0.24069566 |
| 171 | 0.807779 | 0.00232421 | 0.43429216 |
