Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|

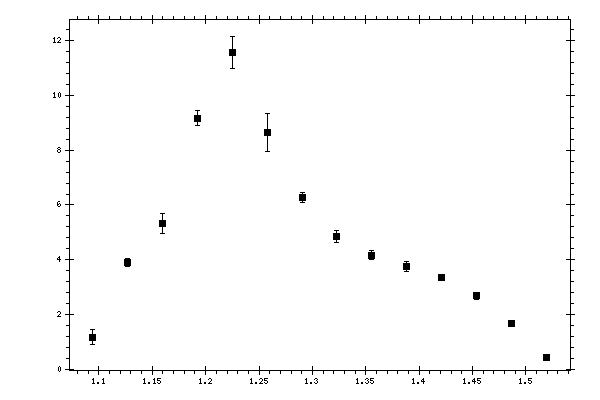

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09418 | 1.16928 | 0.265974 | 0.41568 |
| 1.12687 | 3.89233 | 0.145779 | 0.55621601 |
| 1.15955 | 5.33028 | 0.360383 | 0.8166614 |
| 1.19224 | 9.17671 | 0.27466 | 1.04460858 |
| 1.22492 | 11.5769 | 0.595745 | 0.98649256 |
| 1.25761 | 8.6443 | 0.689431 | 0.79046403 |
| 1.29029 | 6.27429 | 0.186847 | 0.55361041 |
| 1.32298 | 4.83516 | 0.212845 | 0.43425066 |
| 1.35566 | 4.15591 | 0.164636 | 0.31232772 |
| 1.38835 | 3.74415 | 0.173453 | 0.28288996 |
| 1.42103 | 3.35946 | 0.114145 | 0.250529 |
| 1.45372 | 2.67487 | 0.12792 | 0.2014245 |
| 1.4864 | 1.66828 | 0.0504226 | 0.12955961 |
| 1.51909 | 0.428179 | 0.0995285 | 0.03839453 |
