Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

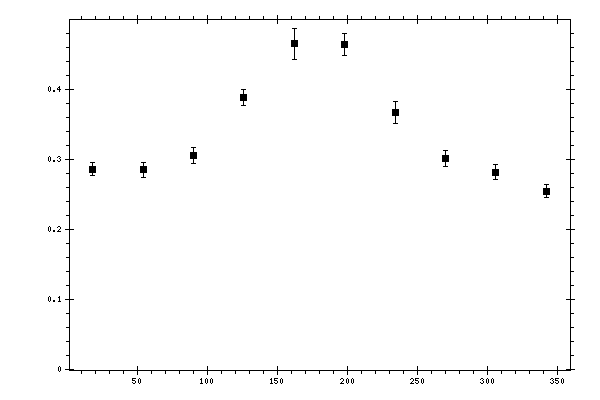

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.285702 | 0.00891182 | 0.03438414 |
| 54 | 0.284658 | 0.0110714 | 0.03302809 |
| 90 | 0.305223 | 0.011991 | 0.03478998 |
| 126 | 0.387989 | 0.0110419 | 0.04000884 |
| 162 | 0.464737 | 0.0222072 | 0.0482038 |
| 198 | 0.463846 | 0.0162657 | 0.04761202 |
| 234 | 0.367307 | 0.0156585 | 0.04220835 |
| 270 | 0.300641 | 0.0116431 | 0.03444569 |
| 306 | 0.281464 | 0.0104063 | 0.03293488 |
| 342 | 0.254231 | 0.00905792 | 0.03232189 |
